Universal Logic Gates

1. Why "Universal" Matters

Ever wonder how those sleek smartphones or powerful computers manage to do, well, everything? The secret lies in tiny switches called logic gates. But these aren't just any switches; some have a special superpower: universality. This means they can be used to create any other logic gate, making them the building blocks of, well, everything!

Imagine having just one type of Lego brick that could be combined to build any structure imaginable. That's essentially what universal logic gates are. They simplify the design process because you don't need a huge library of different gate types. One or two are enough.

So, why not just use a gazillion different gate types? Efficiency! Using a minimal set of universal gates reduces complexity, manufacturing costs, and power consumption. In the world of electronics, smaller, cheaper, and less power-hungry are always desirable traits.

Think of it like this: Instead of having a separate tool for hammering, screwing, sawing, and so on, you have a versatile multi-tool that can do it all. It might not be perfect for every task, but it gets the job done reliably and efficiently.

2. The Dynamic Duo

Alright, drumroll please... there are actually two main universal logic gates: NAND and NOR. That's it! Pretty neat, huh? NAND stands for "NOT AND," and NOR stands for "NOT OR." They might sound a bit intimidating, but their behavior is quite straightforward.

The NAND gate outputs a "true" (or 1) signal unless both of its inputs are "true" (or 1). In that one specific case, it outputs a "false" (or 0) signal. Think of it like a grumpy gatekeeper who only lets people through if at least one of them is deemed unworthy. If both are worthy, the gate slams shut!

The NOR gate, on the other hand, outputs a "true" (or 1) signal only when both of its inputs are "false" (or 0). If either input is "true" (or 1), the output becomes "false" (or 0). This gatekeeper is even grumpier; only those with absolutely nothing going on are allowed to pass.

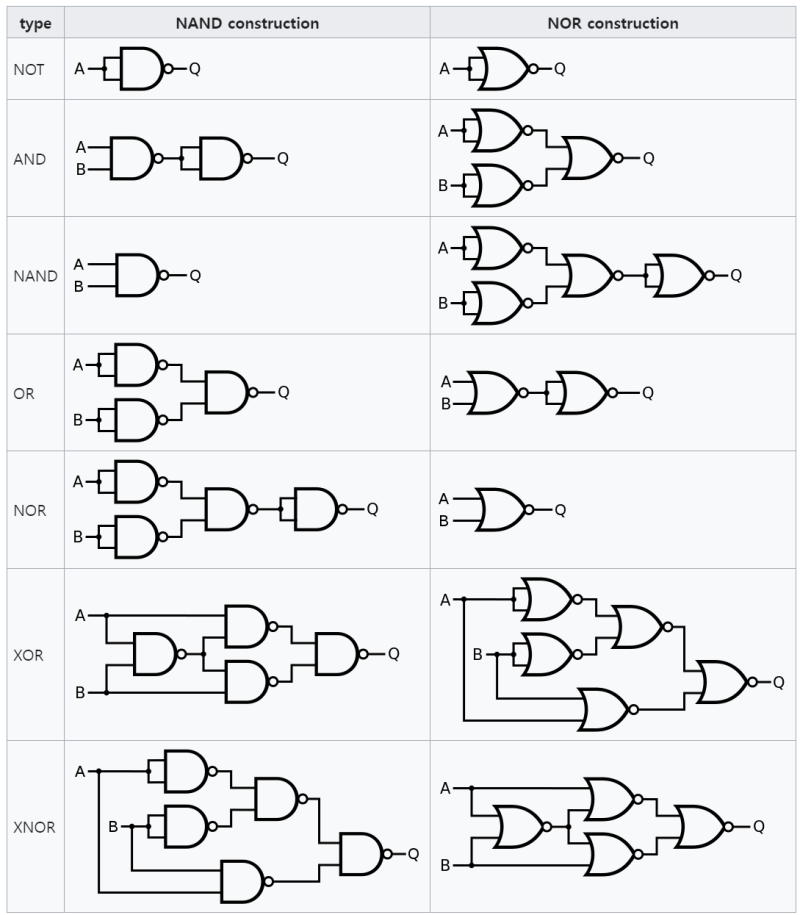

The magic lies in how these seemingly simple gates can be combined to create other gates like AND, OR, NOT, XOR, and XNOR. Its like having the primary colors (red, yellow, blue); you can mix them to create any other color you want.

3. NAND

NAND is often considered the "go-to" universal gate, and for good reason. It's generally easier to manufacture and often more efficient than NOR in many circuit designs. It's kind of the unsung hero of the digital world, quietly powering everything from your alarm clock to the International Space Station.

Why is NAND so popular? Because it is relatively simple to implement using transistors. The fewer transistors you need, the smaller, faster, and cheaper your circuit can be. NAND gates just happen to be a sweet spot in terms of functionality and implementation complexity.

Fun fact: A single NAND gate can be wired up to act as a NOT gate (also called an inverter). This is done by simply connecting both inputs of the NAND gate together. This makes NAND even more versatile because you can easily create the basic building block of digital logic the inverter from a NAND gate. It is extremely helpful and beneficial for engineering.

So, next time you're binge-watching your favorite show or playing a video game, remember the humble NAND gate, working tirelessly behind the scenes to make it all possible. It may not be the flashiest component, but it's certainly one of the most important.

4. NOR

While NAND gets a lot of the spotlight, the NOR gate is no slouch either. It can also be used to create any other logic gate, making it a valuable tool in the hands of a skilled digital designer. NOR gates have their own set of advantages, particularly in certain types of circuit architectures.

Just like with NAND, a NOR gate can be configured to act as a NOT gate. Connect the inputs together, and voila! You have an inverter. This inherent flexibility is what makes these gates so powerful.

NOR gates can be particularly useful in implementing certain types of memory circuits, such as latches and flip-flops. These circuits are essential for storing data in digital systems. So, while NAND might be the more common choice, NOR plays a crucial role in many specialized applications.

So, don't underestimate the power of the NOR gate. It may be the underdog, but it's a vital part of the digital landscape. Plus, it's fun to say "NOR." Try it. See? Fun!

5. Beyond the Basics

Okay, so maybe you're not planning on designing your own computer chips anytime soon. But understanding the concept of universal logic gates can still be surprisingly useful. It illustrates a fundamental principle in many areas of life: that complex systems can be built from simple components.

Think about language. With just a few letters of the alphabet, we can create an infinite number of words and sentences, expressing complex thoughts and ideas. Or consider music. With just a handful of notes and chords, musicians can create a vast array of melodies and harmonies.

The same principle applies to universal logic gates. By understanding how these simple gates can be combined to create complex circuits, you gain a deeper appreciation for the ingenuity and elegance of digital technology. It helps you think about problem-solving in a more structured and efficient way. Also, understanding how these simple gates can be combined to create complex circuits is really an essential basic for any engineer.

So, the next time you're faced with a complex problem, remember the power of universal logic gates. Break it down into smaller, simpler components, and you might be surprised at how easily you can find a solution. And remember, there are only two: NAND and NOR. Simplicity is key!
